10 Best Lab Oscilloscopes Analyzer
#1 Best Pick
4 Channel Oscilloscope Kit, Digital 70MHz PC USB Oscilloscope,Hantek 6074BC 1GSa/s, 2mV-10V/DIV DIY Oscilloscope Kit
Brand: Jectse
Read more
- Multiple functions: Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record, FFT spectrum analyzer and function.
- The interface is similar to benchtop oscilloscope, easy to operate with high cost performance.
- Good mechanical design with small size which is easy for carrying.
- The outer case is made by anodised aluminium., with great heat and abrasive with beautiful appearance.
- Fit for the portable computers, table PC, and repairing/fixing of production line.
Check latest price on Amazon
#2 Best Value

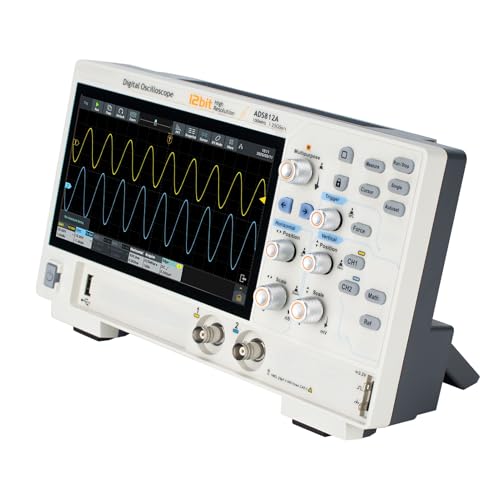

Luocute 100MHz Digital Oscilloscope, 12 Bit 2 Channel with FFT Spectrum Analyzer, Protocol Analyzer, Frequency Counter and Voltmeter, for Noise Analysis (AU Plug (AC))
Brand: Luocute
Read more
- [Intuitive Touscreen Control] The 7-inch multi-touch display offers smartphone-like navigation with customizable shortcuts. advanced triggering and hardware decoding (uart, i2c, spi, can, lin) are supported, along with 43 auto-measurements and advanced math operations for streamlined workflow efficiency.
- [Ultra-fast Waveform Capture] Boasting a 700,000wfms/s update rate, this device improves transient anomaly detection by 10x. it integrates five essential tools: digital oscilloscope, protocol analyzer, high-resolution frequency counter, voltmeter, and fft spectrum analyzerâall in one compact unit for the professionals.
- [Comprehensive Measurement Tools] Includes a glossary of technical terms for quick setup and parametric statistics with visual indicators. cursor gating supports zoom, fft, and xy views, while rich measurement prompts and auto-setup features ensure intuitive waveform analysis for both beginners and experts.
- [High-resolution Signal Analysis] This 100mhz digital oscilloscope features 12-bit hardware with 4096-level vertical resolution, delivering 16x greater detail than conventional oscilloscopes. it detects Îźv-level signal variations, ensuring precision in power supply fluctuation analysis and noise characterization. ideal for engineers requiring ultra-accurate measurements.
- [Versatile Signal Display] With vertical sensitivity ranging from 500 Âľv to 10 v, this oscilloscope clearly displays both weak and strong signals simultaneously without distortion. its broad amplitude range guarantees accurate measurements across diverse signal strengths, making it perfect for complex circuit diagnostics.
Check latest price on Amazon
#3 Budget Pick
DPOS350P 4in1 Tablet Oscilloscope 2 Channel 350MH/z Signal Generator 50MH/z, Spectrum Analyzer, Frequency Response Analyzer
Brand: CHIHTNOP
Read more
- 1. **Versatile Functionality**: The DPOS350P 4in1 Tablet Oscilloscope combines the features of an Oscilloscope, Signal Generator, Spectrum Analyzer, and Frequency Response Analyzer in one compact device, making it for both beginners and professionals.
- 2. **High Performance**: With a 2 Channel capacity and a bandwidth of 350MH/z, this Oscilloscope delivers precise measurements and reliable performance for various electronic applications.
- 3. **User-Friendly Interface**: The intuitive tablet interface of the DPOS350P Oscilloscope allows for easy navigation and operation, enhancing your testing experience and efficiency.
- 4. **Portable Design**: Designed for portability, this Oscilloscope is lightweight and easy to transport, for fieldwork or on-the-go testing without compromising functionality.
- 5. **Comprehensive Analysis Tools**: Equipped with advanced analysis capabilities, this Oscilloscope enables detailed signal evaluation, making it suitable for a wide range of electronics projects and troubleshooting tasks.
Check latest price on Amazon
#4 Top Choice
Eletalker 2 in 1 Handheld Oscilloscope Kit 1000mAh Portable Mini Digital Oscilloscope 2.8inch Screen Professional DSO152 Small Oscilloscope 2.5MS/s Sampling Rate 200KHz Bandwidth for Measure Waveform
Brand: Eletalker
Read more
- â¨ăFull Trigger FunctionăWith full trigger function of auto, normal and single, this oscilloscope can be used freely for both periodic analog signals and non-periodic digital signals. With 2.8inch HD LCD screen with a resolution of 320Ă240, the Type-C interface supports data transmission and charging. It supports interface to directly update firmware.
- â¨ă2.5MS/s Sampling Rate and 200Khz BandwidthăThis handheld oscilloscope has 2.5MS/s sampling rate and 200Khz bandwidth. The 10x probe can measure up to 800VPP, which is equivalent to 280V AC. It can measure voltages up to Âą400V.
- â¨ăQuick Measure WaveformăWith one-key AUTO setting of all parameters, it can quick measure waveform, Improve efficiency. Long press the AUTO button to quickly calibrate the baseline.
- â¨ăEasy to CarryăThis portable oscilloscope is lightweight and easy to carry. It can be used directly and avoids assembly and welding problems. This oscilloscope is suitable for maintenance industry, meeting daily testing needs.
- â¨ăWith 1000mAh Lithium BatteryăWith built-in 1000mAh high-quality lithium battery, it can be used continuously for about 4 hours after full charged. It comes with a type-c charging cable, which can be used while charging.
Check latest price on Amazon
#5 Popular Choice
Handheld Mini Oscilloscope, Portable Handheld Tablet Oscilloscope 2.8in TFT 1M Bandwidth 5.0MS/s Sampling Rate, Digital Oscilloscope Kit Portable Automotive Oscilloscope Meter
Brand: Generic
Read more
- ăVersatile Lab OscilloscopeăEnhance your testing capabilities with a full trigger function and a 2.8 inch HD LCD screen. Enjoy seamless data transfer and charging through the Type C interface, mini osciloscopio kit along with easy firmware updates.
- ăEffortless Oscilloscope Multimeter IntegrationăSimplify waveform measurement with one key AUTO setting and quick baseline calibration. This oscilloscope multimeter combo is a must-have for streamlined workflow and accurate readings of multimeter oscilloscope.
- ăHigh-Performance Handheld OscilloscopeăExperience accurate measurements with this compact oscilloscope featuring a 5.0MS/s real-time sampling rate and 1M bandwidth. Oscilloscope multimeter for analyzing analog and digital in various applications.
- ăMini Oscilloscope for On-theăTake this lightweight and user-friendly oscilloscope anywhere you go. Ideal for industries such as repair and R&D education, automotive oscilloscope simplifies daily testing tasks and ensures efficiency.
- ăLong-Lasting Oscilloscope AutomotiveăStay powered up with the built-in 1000mAh lithium battery, tablet oscilloscope providing up to 4 hours of continuous use. With the convenience of a Type C charging cable, maximize your productivity on the tablet oscilloscope.
Check latest price on Amazon
#6 Top Pick
Hantek DSO2D15 Digital Oscilloscope 2CH 1GSa/S Storage Economical Oscilloscope 150MHZ Bandwidth Handheld with Signal Source
Brand: Hantek
Read more
- Has 2 channels, and each channel with independent knob control.
- 150 MHz ana-log bandwidth and 1GSa/s sampling rate.
- It has a 7-inch TFT LCD screen, 800 * 480 pixels, 16 million display colors (24bit true colors).
- Built-in a 25MHz signal generator, support arbitrary wa-ve burst output, support modulation wa-veform output.
- It can save settings, wa-veforms, reference wa-veforms, CSV, pictures and other data formats, with 5-digit digital voltmeter and 6-digit hardware frequency counter functions.
Check latest price on Amazon
#7 Top Pick
BSIDE 2 Channels Handheld Oscilloscope 50MHz Bandwidth Digital Scope Tester, 3.98" Full-Viewing Touch Screen with 250MSa/s Sampling Rate DDS Generator for Hobbyist Lab Car Power Electronic Education
Brand: BSIDE
Read more
- [2 Channels 50MHz Bandwidth]: Handheld channel oscilloscope features dual channel 50MHz bandwidth, 250MSa/s sampling rate, 128kb record depth, etc.
- [3.98" TFT Touch LCD]: 2 channel oscilloscope features super-large 3.98 inch touch display screen, which greatly enhance your functional operation experience.
- [Full-Viewing Screen]: Automotive digital scope tester equipped with ultra-wide angle 480*320 LCD, which provides you with best reading enjoyment, you could get the clear test results at wide angle.
- [3000mAh Rechargeable Battery]: BSIDE O2 oscilloscope comes with rechargeable 3000mAh rechargeable battery, ensuring that you never have to worry about running out of power during your measurements.
- [Silicone Protective Case]: DDS signal generator equipped with full-body soft silicone case that provides a comfortable feel and protection against shocks, friction & bumps.
Check latest price on Amazon
#8 Top Pick
Hantek 6022BL PC USB Oscilloscope 2 Channels 20MHz Bandwidth 48MSa/s Sample Rate 16 Channels Logic Analyzer
Brand: Hantek
Read more
- 20MHz Bandwidth; 48MSa/s Sample Rate; 16 Channels Logic Analyzer
- Be Suitable for Notebook Computer, Product Line Maintenance, be Used Easily on Business
- USB2.0 Interface, no External Power Source Required, Easy to Use
- Standard USBXI(TM) Interface, Easily Inserts into USBXI(TM) Housing to Make up a Combination Instrument
- Great Industrial Design, the High Quality Anodized Aluminum Case is Extremely Durable and Heat-resistant
Check latest price on Amazon
#9 Top Pick
DOS1102 Best Digital Oscilloscope 100mh/z 2chanel oscillograph 1gsa/s 7'' Tft LCD Better Than Ads1102cal+ Osciloscope Kit
Brand: CHIHTNOP
Read more
- 1. **High Performance**: The DOS1102 Digital Oscilloscope features a real-time sampling rate of 1GSa/s and a maximum waveform capture rate of 50,000 wfm/s, making it an choice for precise signal analysis and testing.
- 2. **Wide Bandwidth**: With a bandwidth range of 100-349MHz, this oscilloscope ensures accurate measurement across various frequencies, allowing engineers and technicians to work confidently on a wide range of electronic projects.
- 3. **User-Friendly Display**: The 7-inch TFT LCD screen provides a display resolution of 640x480 pixels, ensuring clear and detailed visualization of waveforms, which enhances user experience and facilitates effective troubleshooting.
- 4. **Dual Channel Capability**: Equipped with two digital channels, the DOS1102 oscilloscope allows users to analyze multiple signals simultaneously, streamlining the process of comparing and understanding complex waveforms.
- 5. **Reliable Build Quality**: Designed without a removable battery, the DOS1102 oscilloscope is built for consistent performance during long testing sessions, providing reliability and durability for both professional and DIY electrical applications.
Check latest price on Amazon
#10 Top Pick
3 in 1 Handheld Oscilloscope, Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
Brand: XEAST
Read more
- Dual-Channel Oscilloscope with Advanced Waveform Measurement: The XE-703S features a dual-channel design that accurately measures various waveform types, including pulse, circular, and noise waveforms. The AUTO recognition function enhances efficiency by automatically identifying unknown waveforms, allowing for quick and accurate analysis.
- Comprehensive Multimeter Functionality: In multimeter mode, this device boasts 25,000 counts and can measure resistance, capacitance, continuity, diodes, and current. Its multifunctional design makes it an essential tool for electronic measurements, ensuring high precision across a wide range of applications.
- Flexible Operating Modes for Different Needs: The oscilloscope offers two operating modesânormal and high-speed. In normal mode, it provides a sampling rate of 200MSa/s and a bandwidth of 30MHz for energy efficiency. Switch to high-speed mode for a sampling rate of 280MSa/s and a maximum bandwidth of 50MHz, catering to various testing requirements.
- Versatile Signal Generator Capability: The XE-703S includes a built-in signal generator that outputs multiple waveforms, such as sine, square, and triangle waves. The synchronous display allows for easy observation and comparison of waveforms, greatly expanding the device's application range.
- Convenient Type-C Charging and Data Transfer: Equipped with a Type-C charging port, the XE-703S supports fast charging and efficient data transfer. This modern interface enhances usability, making it easy to recharge and transfer data. Users are encouraged to read the manual for optimal usage and troubleshooting guidance.
Check latest price on Amazon
